JT Lite Base Plate 6" Adj.

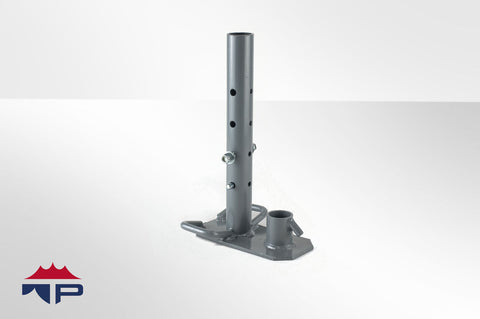

This base plate is designed for the Jumbotrac Lite frame system and is designed to connect to the Jumbotrac Lite leg pipe. The baseplate allows for adjustability from 0" up to +6" in 2" increments. The foot plate also referred to as a base plate is fabricated from steel and then powder coated with a grey gloss coating. This foot plate is constructed from 1.25" SCH40 steel and welded to a 4" x 8" x 1/4" steel plate. The plate has a stake hole able to receive up to a 1.0" diameter stake and a tensioning nub welded to the stake hole riser that is used for tensioning the tent fabric down to the base plate. The foot plate also includes two 0.50" diameter "U" shaped connection brackets that can be utilized for lateral cable bracing. The dimensions of the 1.25" SCH 40 pipe are 1.660" OD and 1.380" ID.
