JT Lite Eave Beam 9' 4"

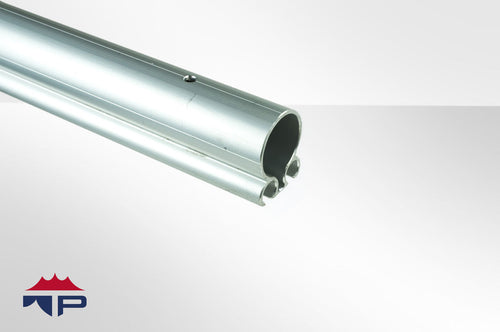

This kedered aluminum tubing is used as an eave/perimeter in the Jumbotrac Lite frame tent system. This extrusion is used on all Jumbotrac Lite 10' middles and also on the ends of 10' wide and 20' wide Jumbotrac Lite gable and hip frame styles. Each length of tubing is drilled with parallel 5/16" diameter through holes located 3" from each end of the extrusion.
Specifications:

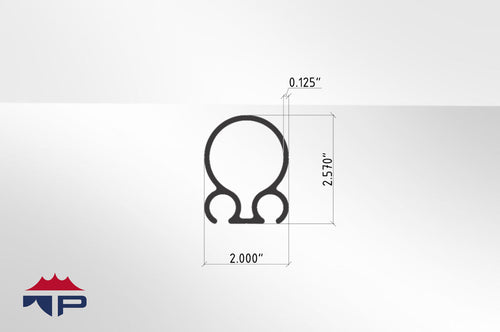

Base Material: 2.57" x 2.00" JT Eave Extrusion 6061-T6 Structural Aluminum Tubing, ID 1.750", OD 2.00", and a 0.125" wall thickness
Finish: Anodized Commercial Clear
Specifications:
Base Material: 2.57" x 2.00" JT Eave Extrusion 6061-T6 Structural Aluminum Tubing, ID 1.750", OD 2.00", and a 0.125" wall thickness
Finish: Anodized Commercial Clear
SKU: Z293JTE0904
