JT Brace 2'

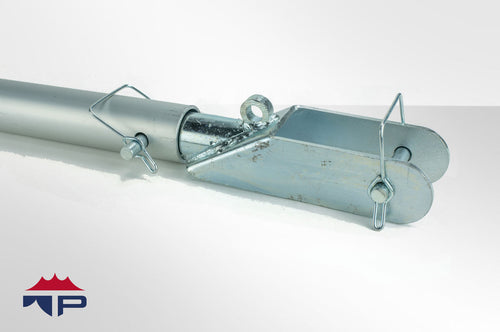

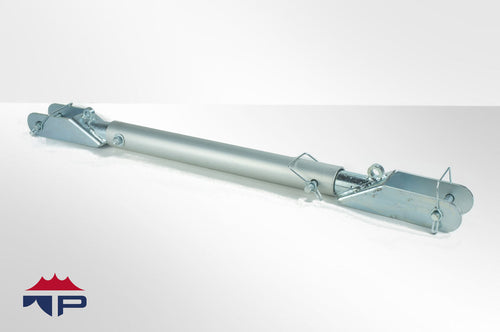

This is the standard brace used throughout the Jumbotrac system. The adjustable design of this brace allows it to be used on corner legs, intermediate legs, and the rafter locations by adjusting the to the pre-drilled locations. The end fittings are welded from precision cut 1.25" Schedule 40 steel pipe and then zinc plated. The dimensions of the 1.25" SCH 40 pipe are 1.660" OD and 1.380" ID. The brace tube is constructed of 2" OD Aluminum with 0.125" wall thickness.
