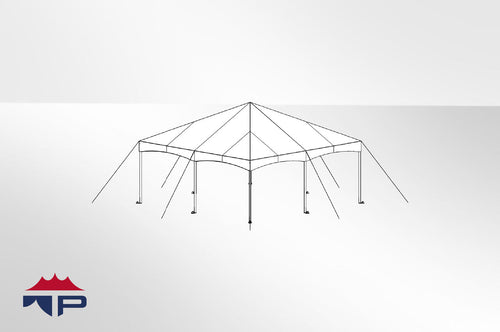

20x20x8 Qwiktop Frame Tent Complete | UW

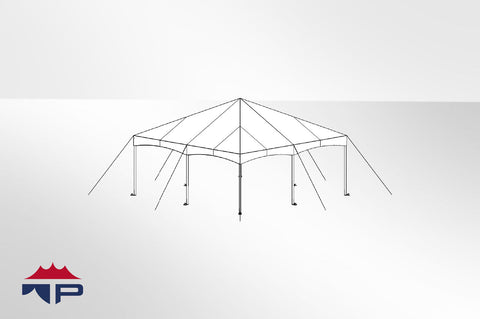

The Qwiktop Frame Tent is a medium duty frame tent designed for short term event and rental applications. The tent top fabric is constructed of a 16oz white blockout PVC (vinyl) fabric that is certified flame retardant and is loaded with UV and mildew inhibitors. The frame system is constructed from structural grade 6061-T6 anodized aluminum and powder coated steel fittings. This tent requires 3-4 persons for setup and can be installed in less than 45 minutes. Longest component is 14'4" in length. Click here for full product manual.

Engineered for ASCE 7-10 105mph (3 Second Gust) Exposure C

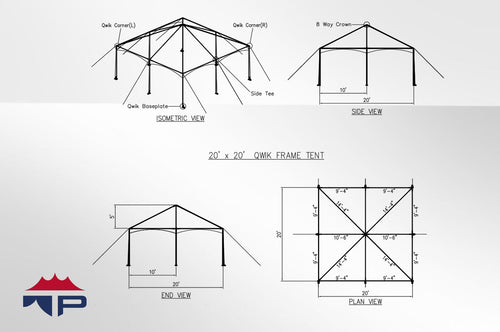

Each complete tent includes:
(1) 20x20 1pc Qwiktop Frame Tent Top
(1) Storage bag for tent top

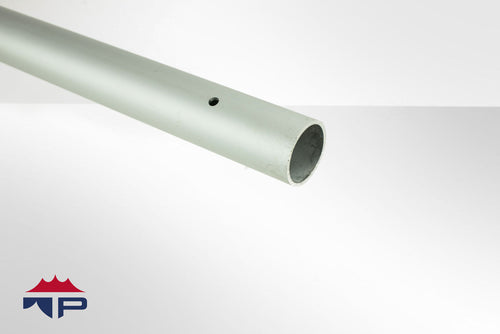

(8) 7' 8" - 2" OD Tube
(8) 9' 4" - 2" OD Tube
(4) 10' 6"- 2" OD Tube
(4) 14' 4"- 2" OD Tube

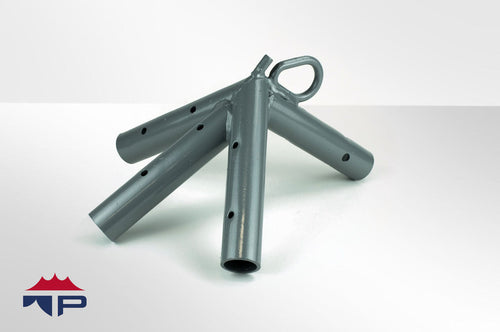

(4) Qwik Corner Fitting

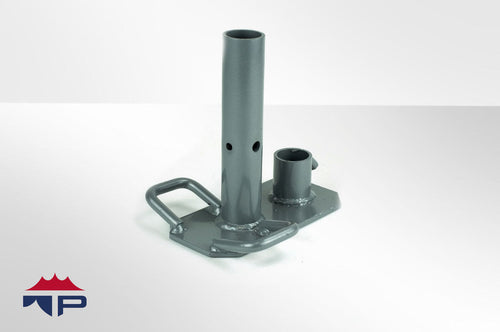

(8) Qwik Footplate

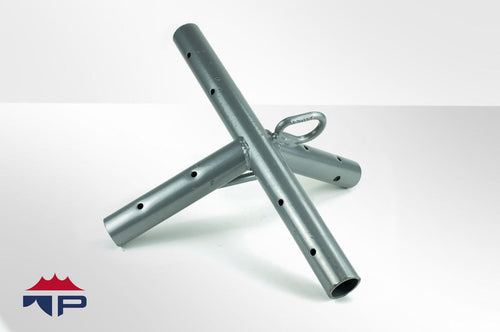

(4) Side Tee Fitting

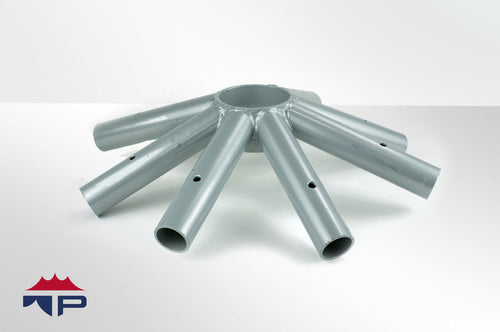

(1) 8 Way Crown Fitting
(1) 20x Std. Frame Assembly Cable

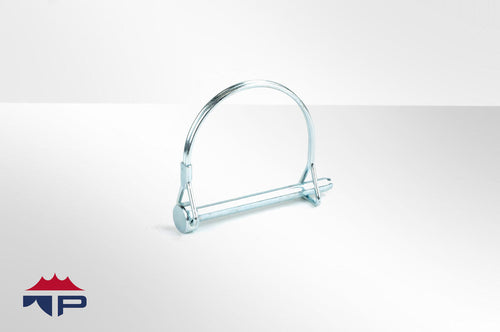

(48) Acadapins
(8) 1" Inline Ratchet
(8) 1" x 42" Double Headed Stake
